Aluminum Honeycomb Panels Production process

1. Spread out the aluminum honeycomb in advance and cold-press to level it. Duration: more than 4 hours, pressure: 10-25 tons.

2. Prepare glue: the mixing ratio of the main agent and curing agent is: main agent 4, curing agent 1.

3. Raise the press to a suitable height and hang the safety bolt.

4. Lay the bottom plate on the gluing workbench for uniform gluing. (The table should be kept as clean as possible during the process. If there is glue attached to the decorative surface of the aluminum plate, wipe it up in time.)

5. Place the glued aluminum plate in the center on the press table, or on the special cold-pressed mobile tray.

6. Place the spread-open aluminum honeycomb on top of the glued aluminum plate and place it in the center. Ensure that the aluminum honeycomb is bigger than the aluminum plate as much as possible.

7. Repeat the 5 steps for the panel, and then flip it over the aluminum honeycomb.

8. Repeat steps 4, 5, 6, and 7 in a loop, and try to ensure that the aluminum plates are aligned perpendicular to the ground during the stacking process.

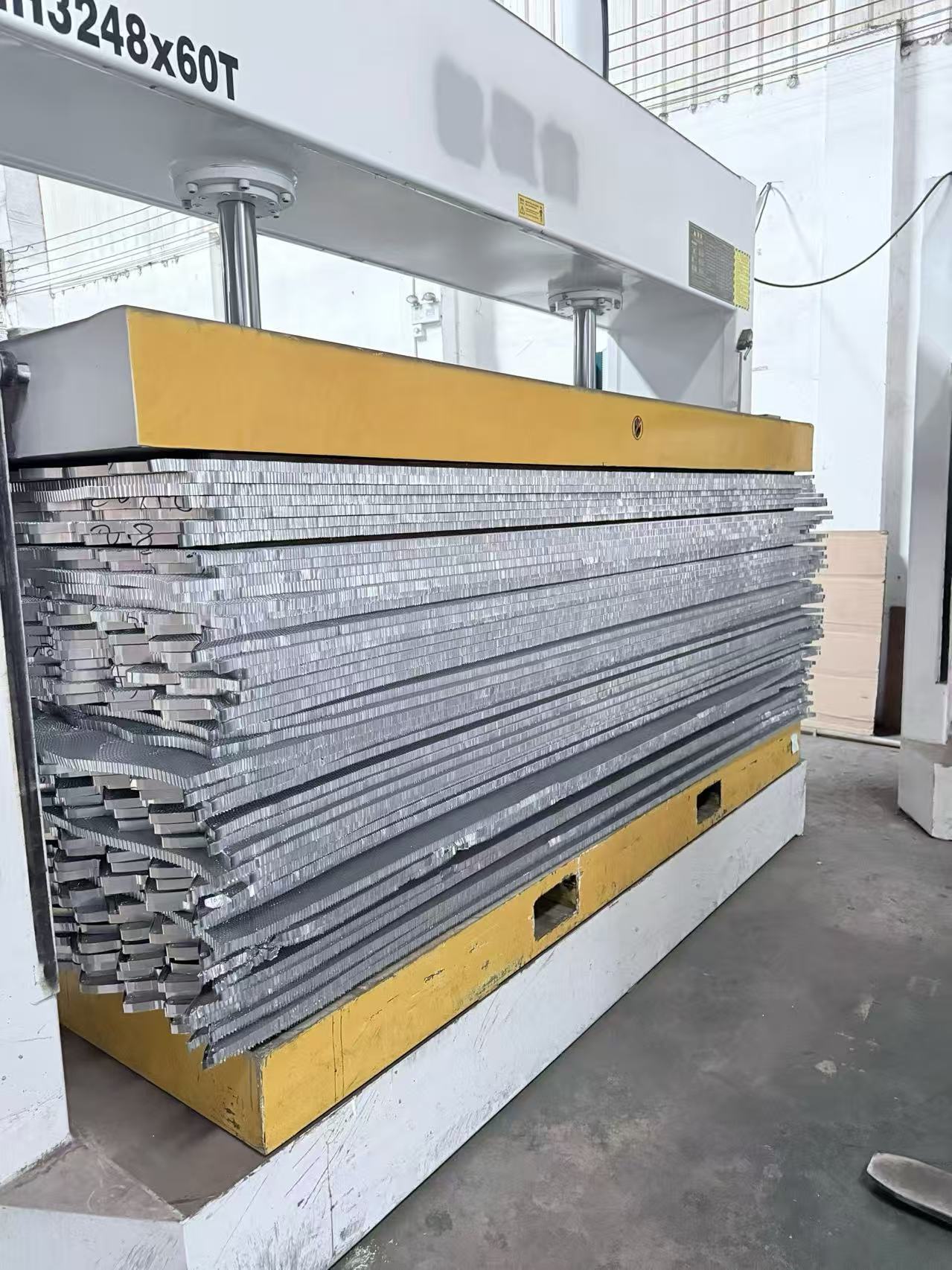

9. Cold pressing: try not to exceed 40 honeycomb panels per cold pressing. Cold pressing time: 4-5 hours (room temperature above 15 degrees), 6-8 hours (room temperature below 15 degrees), pressure: 15-25 tons.
